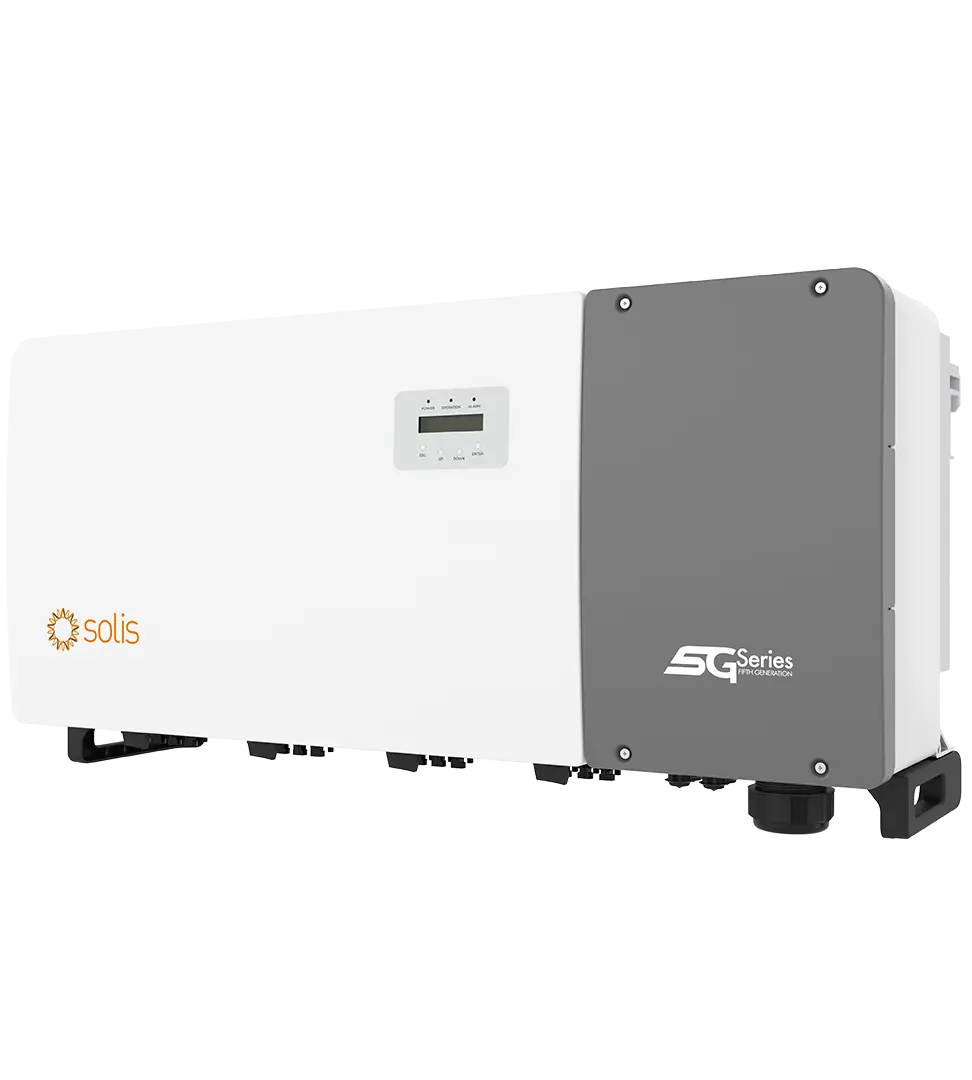

Designed for large-scale photovoltaic systems, the Solis 110K‑5G‑PRO inverter delivers high performance, advanced safety features, and installation flexibility—ideal for commercial rooftops and utility-scale solar arrays.
Key Features
-
High Power & Efficiency
Rated at 110 kW AC power (up to 121 kW surge) with peak efficiency up to 98.7%.
-
Scalable MPPT Design
Offers 6 to 10 MPPT inputs, supporting dual strings per tracker (up to 16–20 strings). Allows over 150% DC/AC oversizing and compatibility with bifacial modules.
-
Wide Voltage Range & Low Startup
Operates from approximately 180–1000 V DC (maximum 1100 V), with startup voltage around 180–195 V—ideal for long string configurations.
-
Strong Safety Features
Includes AFCI (arc fault) protection, DC and AC Type II surge arresters, and optional PID recovery for enhanced safety and reliability.
-
Grid Support & Monitoring
Features nighttime SVG reactive power, intelligent string monitoring, smart I‑V curve scanning, remote firmware updates via cloud, and optional PLC communication.
-
Robust Build
Rated IP66 for harsh environmental conditions. Supports aluminium wiring and includes integrated DC isolators. Compact yet sturdy design weighing approximately 93 kg.
-
Night Consumption & Warranty
Low nighttime power consumption (<2 W) and a standard 5-year warranty, extendable to 10 years.
